Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg
  • name
  • name
  • name

Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg

Brand Name: SAIKESAISI
Price: $180.00/pieces 1-9 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Production Rate:
0-60 Ml/min
Weight:
1.5kg
Dimension(L*W*H):
210mm 140mm 170mm
Warranty Of Core Components:
1 Year
Product Description
Product Description

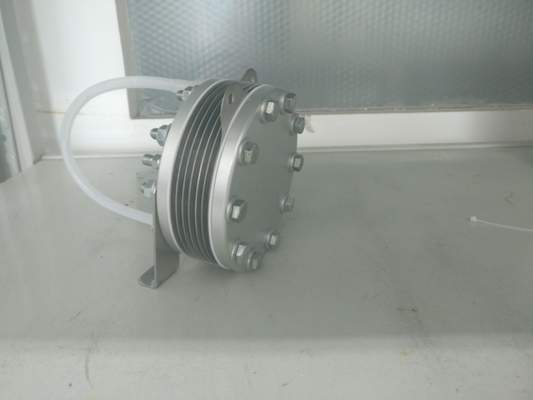

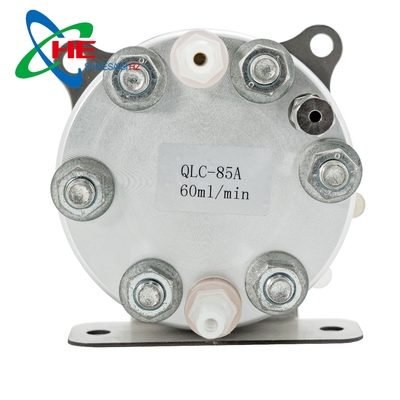

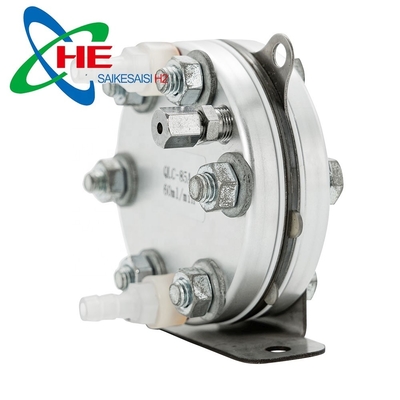

Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 0
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 1
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 2


Product Introduction

QLC electrolysis cell is an advanced patented product, which are light , highly effective, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali). That's PEM technology. The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes ,which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency.

Working Principle

Electrolytic water meeting the requirements (with electrical resistivity >1MΩ/ cm) , after being put into the anode chamber of electrolytic cell, when power is switched on ,will be decomposed at once at the anode : 2H2O = 4H+ + 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2) gas.The hydrogen proton, in the form of aqua ion (H+.XH2 O),and under the action of electric field force, through SPE ion membrane, will arrive in the cathode to absorb electron to form hydrogen gas.
Specification
Brand Name
QLC-85A
Production Rate
0-60 ml/min
External Material
Aluminum alloy
Electrode material
titanium
Power supply requirement
DC 3-4V , 9A
Application Field
1.used for hydrogen&oxygen generator
2.used for Hydrogen Rich Water machine
3.used for health care equipment
4.used for experiment
Packing & Delivery
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 3
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 4
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 5
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 6
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 7
Lightweight PEM Hydrogen Electrolyzer for Industrial Needs 210mm x 140mm x 170mm 1.5kg 8
