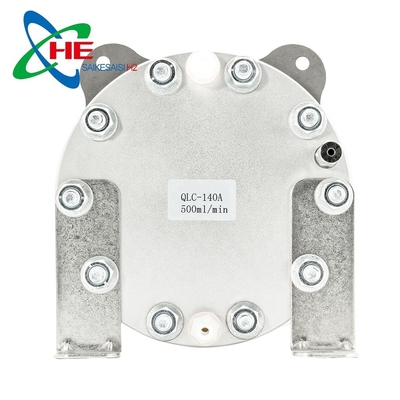

500 ml/min Hydrogen Flow PEM Electrolysis Cell for and High Production Rate Fuel Cell

Brand Name:	SAIKESAISI
Price:	$620.00/sets 1-4 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Production Rate:

Ha Production Rate : 0-500 Ml/min

Weight:

2.5 KG

Dimension(L*W*H):

140mm Diameter

Warranty Of Core Components:

12 Months

Model:

QLC-500

Product Name:

Electrolyzer Cell

MOQ:

Hydrogen Flow:

500 Ml/min

O2 Flow Rate:

250 Ml/min

Voltage (V):

Current (A):

Layer:

Electrical Resistivity(MΩ/cm):

> 1

Warranty:

12 Months

Product Description

QLC electrolysis cell is an advanced patented product, which are light , highly effective, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali). That's PEM technology.The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes , which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency.

Product Description

1.Negative electrode
2. Oxygen and water outlet
3. Positive Electrode
4.H2 outlet
5.Fix Bracket
6.Water Inlet

Specification

Model	QLC-500
Product name	electrolyzer cell
Hydrogen flow	500 ml/min
Oxygen flow	250 ml/min
voltage (V)	5
current (A)	45
layer	1
Water Temperature(℃)	5-55
Electrical Resistivity(MΩ/cm)	> 1
Net weight (KG)	2.5
Warranty Year	1

Application

1.used for hydrogen&oxygen generator
2.used for Hydrogen Rich Water machine
3.used for helth care equpment
3.used for experiment

Recommend Products

Our workshop

Manufacturing Technique

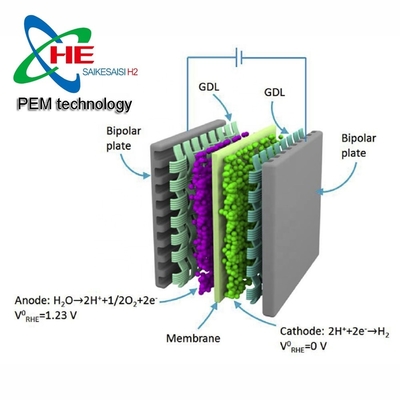

Electrolytic water meeting the requirements (with electrical resistivity >1MΩ/ cm) , after being put into the anode chamber of electrolytic cell, when power is switched on ,will be decomposed at once at the anode : 2H2O = 4H+ + 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2) gas.The hydrogen proton, in the form of aqua ion (H+.XH2 O), and under the action of electric field force, through SPE ion membrane, will arrive in the cathode to absorb electron to form hydrogen gas.
